Passive antenna multicouplers for rack mounting

Passive antenna multicouplers for rack mounting



A well-established line of Ro.Ma. enginery products  supplied throughout many years to military and civil agencies and currently operating in many radiocommunication installations in Italy and abroad. The fundamental function of a multicoupler is to allow the most efficient use of the available antennas, by connecting  more radio receivers to the same antenna or establishing the antennas-receivers configuration best  suited to the operational  requirements. As an additional advantage, the multicoupler gives opportunities to simplify the configuration of the receiving system through reduction of the RF cabling, with positive results at both technical and cost-saving levels.

The design of the Ro.Ma multicouplers is continuously upgraded  and new versions of standard equipment are developed to incorporate new technologies and new components.

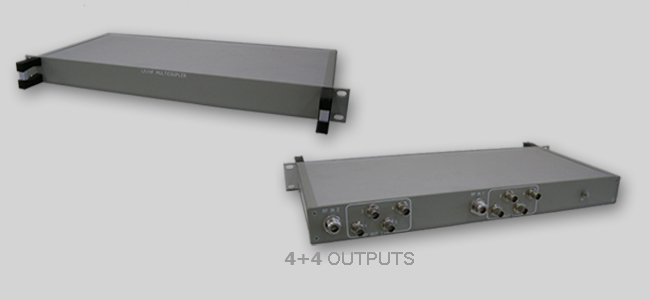

Passive antenna multicoupler MR-0102

 An 8-output passive Rx multicoupler covering the VLF-MF-HF (10kHz to 32MHz)  frequency band. Incorporating new-generation magnetic materials which allow wideband operation with a low-ripple insertion loss ripple less than 1dB and a VSWR ≤1.5:1 , the multiplexing capabilities can be extended to 16 outputs by addition of a power divider and a circuit  card.



                                     Technical characteristics

Antenna inputs

2

Outputs to the receivers

4 + 4

Frequency range

20 KHz to 32 Mhz   Antenna #1

20 KHz to 32 MHz   Antenna #2

Input/output impedance

50 Ohm

In/Out insertion loss

6,5 dB ± 1 dB

VSWR

≤ 1,5:1

Separation between outputs

≥ 30 dB

Power handling

10 W max, continuous

RF connectors

“N” type for the antenna inputs

“BNC” type for the outputs to the receivers

Size

19” 1U Standard Rack, depth 270mm





Passive antenna multicoupler MR-0202

An 8-output passive Rx multicoupler covering the SHF (40kHz to 120MHz)  frequency band,.  incorporating new-generation magnetic materials which allow wideband operation with a low-ripple insertion loss ripple less than 1dB and a VSWR ≤1.5:1, the multiplexing capabilities can be extended to 16 outputs by addition of a power divider and a circuit  card.



                                    Technical characteristics

Antenna inputs

2

Outputs to the receivers

4 + 4

Frequency range

40 KHz ÷ 120 Mhz  1° Antenna

50 MHz ÷ 2 GHz     2° Antenna

Impedance

50 Ohm

In/Out insertion loss

7 dB ± 1 dB

7 dB ± 2 dB at the extreme frequencies

VSWR

≤ 1,5:1

Decoupling between outputs

≥ 20 dB

Power handling

1 W rms

RF connectors

“N” type for the antenna inputs

“N” type for the outputs to the receivers

Size

19” 1U Standard Rack, depth 270mm
