Headsets without noise cancellation

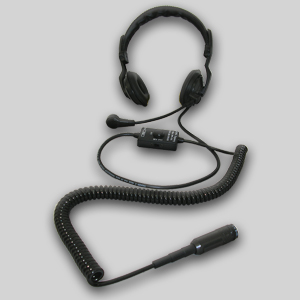

Headset MHS-700XL-1
Lightweight Rx/Tx headset suitable for use in low-noise environments.
Dynamic-type microphone with sensitivity adjusted to reduce environmental noise. Provided with an appropriate PTT switch, it can be terminated with a VG 96934 type connector or a
MIL-STD U-229/U type connector
-Technical characteristics
EARPHONES |
|
Frequency range |
20Hz to 20,000 Hz |
Nominal impedance |
30 Ohm typical |
Power handling |
200 mW max |
Distortion |
1,5 % max |
MICROPHONE |
|
Frequency range |
80Hz to 12 KHz |
Nominal impedance |
600 Ohm |
Sensitivity |
-76 dBm |
Nominal output level |
-38 dBm |
VG 96934 CB10L1L0 Connections |
|
A |
GND |
B |
Mike Audio |
D |
PTT |
F |
GND |
G |
Earphone Audio |
H |
Earphone Audio |
U-229/U Connections |
|
A |
GND |
B |
Earphone Audio |
C |
PTT |
D |
Mike Audio |
|
