Active antenna multicouplers
A family of active Rx multicouplers of advanced design which utilizes up-to-date LNA technologies and new generation magnetic components to provide high-level
performance over an extended frequency range and other favorable characteristics as low-ripple insertion loss, low noise figure and high amplification linearity.
The active multicouplers allow coupling of several radio receivers to a single antenna over the 20kHz to 32MHz frequency range without reduction of the signal level, as the antenna signal is amplified before distribution to ensure a 0dB
nominal loss between the antenna input and each receiver.

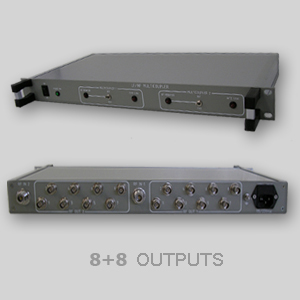

Active antenna
multicoupler MR-2-8, 8+8 outputs The MR-2x8/A allows
coupling of 8+8 radio receivers to two Rx antennas over the 20kHz to 32MHz frequency bands, with capabilities for extension to 16 outputs by addition
of a power divider and a circuit card
Designed to meet a specific Customer requirement, the MR-2x8/A is composed of two identical and independent standard MR-1x8 multicoupler units ( one antenna
input and 8 receiver outputs), assembled in a 19” Rack Standard 1U configuration.
Technical characteristics
|
Antenna inputs |
2 |
|
Outputs to the receivers |
8 + 8 |
|
Frequency range |
10 kHz ÷ 32 MHz Antenna #1
10 kHz ÷ 32 MHz Antenna #2 |
|
Impedance |
50 Ohm |
In/Out insertion loss
|
0 dB ± 1 dB
0 dB ± 2 dB at the frequency extremes |
|
VSWR |
≤ 1,5:1 nominal
≤ 2:1 over the 10 kHz a 20 kHz band |
|
Decoupling between outputs |
≥ 30 dB |
|
Noise figure |
≤ 8 dB |
|
Intercept point IP3 |
≥+ 40 dBm |
|
BITE |
Monitoring and failure indication |
|
Power handling |
30 W |
|
RF connectors |
” N” type for the antenna inputs
“BNC” type for the outputs to the receivers |
|
Size |
19” 1U Standard Rack, depth 270 mm |
|
Primary power |
220 / 110 Vac switchable, 40 Va |
|
Weight |
3Kg approx. |

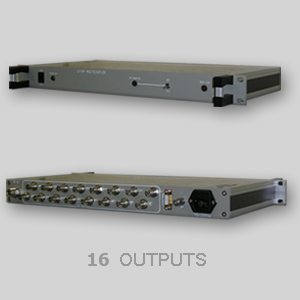

Active antenna multicoupler
MR1-16A, 16 outputs The MR 1-16 A Multicoupler is a new addition to
the line of antenna multicouplers developed by Ro.Ma. enginery for association with radiocommunication systems in operating
environments where space for antenna installations is at a premium. The MR 1-16 allows coupling of 16 radio receivers to a single antenna over the 20kHz to 32MHz frequency range without reduction of the signal level, as the antenna signal is
amplified before distribution to ensure a 0dB nominal loss between the antenna input and each receiver.
Technical characteristics teristics
|
Antenna inputs |
1 |
|
Outputs to the receivers |
16 |
|
Frequency range |
20 kHz to 32 MHz |
|
Impedance |
50 Ohm |
|
Insertion loss |
0 dB ± 1 dB ( 20 KHz to 32 MHz) |
|
VSWR |
≤1,5:1 (20 KHz to 32 MHz) |
|
Decoupling between outputs |
≥ 30 dB |
|
Noise figure |
≤ 8 dB |
|
Intercept point IP3 |
≥+ 40 dBm |
|
BITE |
Monitoring and failure indication |
|
RF connectors |
“N” for the antennas, “BNC” for the receivers |
|
Primary power |
220/115 Vac 0,5 Amp |
|
Size |
19”Rack Standard 1U , depth 270mm |
|
