Handsets

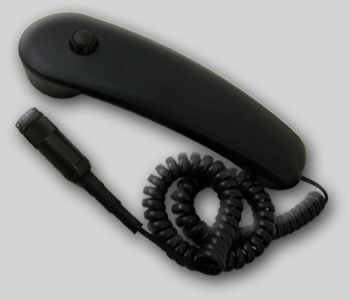

Handset MHS-800XL
To complete the line of products, a special handset has been developed, fitted with a PTT pushbutton and VG96934-CB10 L1-L0 type
connector.
Configured as a standard telephone terminal, the handset has the impedance and level values typical of military handsets.
The handset can also be provided with U-229/U type connectors with standard connections
-Technical characteristics
EARPIECE |
|
Frequency range |
20Hz to 20,000 Hz |
Nominal impedance |
600 Ohm |
Power handling |
100 mW |
Distortion |
1,5 % max |
MICROPHONE |
|
Frequency range |
80Hz to 12 KHz |
Nominal impedance |
300 Ohm |
Sensitivity |
-76 dBm |
Nominal output level |
-40 dBm |
|
