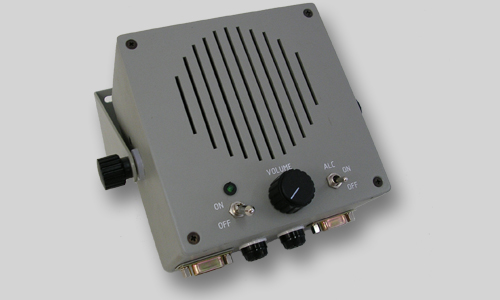

Audio input connection |
DB 9-pin Female, pin 2 (Audio), and 3 (GND) |
Audio input impedance |
600 Ohm |
Audio response |
200 Hz to 12.000 Hz
± 2 dB |
+ 24 Vdc Out toTTM User Terminal |
DB 9-pin Female pin 1 (+24Vdc) and 5 (GND) |
Audio input level (ALC switched in) |
– 40 dBm to + 10 dBm |
Output power level @ +28 Vdc |
12 W max (with ALC)
18 W max (without ALC) |
Distortion at maximum power level@ +28 Vdc |
≤ 0,5 % with ALC @ 12 W
≤ 2 % without ALC @ 18 W |
Volume adjustment |
1-turn potentiometer |
DC primary power |
21Vdc to 28 Vdc 1,5 Amp max |
Primary power input connector |
DB 9-pin Male, pin 1 (+24 Vdc) and 5 (GND) |
Case construction |
1mm-thick aluminum, painted RAL 7030. Navy Gray |
Size |
H= 120 mm W= 120 mm D= 77,5 mm |
Weight |
1 Kg approx. |
Mounting |
Mounting plate with holesi |
