Headsets with noise cancellation

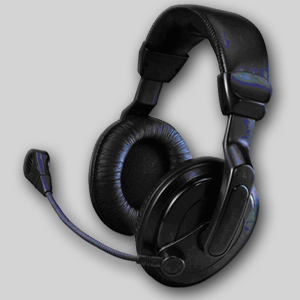

Headset MHS-700XL
Headset with boom microphone specifically developed for radio-telegraphy applications, with earphones designed for optimum environmental noise cancellation. Provided with an
appropriate PTT switch, it can be terminated with a VG 96934 type connector or a MIL-STD U-229/U type connector.
Technical Characteristics
HEADSET |
|
Frequency range |
20Hz to 20,000 Hz |
Nominal impedance |
600 Ohm typical |
Power handling |
200 mW max |
Distortion |
1,5 % max |
MICROPHONE |
|
Frequency range |
80Hz 12 KHz |
Nominal impedance |
300 Ohm |
Sensitivity |
-76 dBm |
Nominal output level |
-38 dBm |
U-229/U Connections |
|
A |
GND |
B |
Audio Rx Headset |
C |
PTT |
D |
Mike Audio |
VG 96934 CB10L1L0 Connections |
|
A |
GND |
B |
Mike Audio |
D |
PTT |
F |
GND |
G |
Right-side Earphone Audio |
H |
Left-side Earphone Audio |
|
